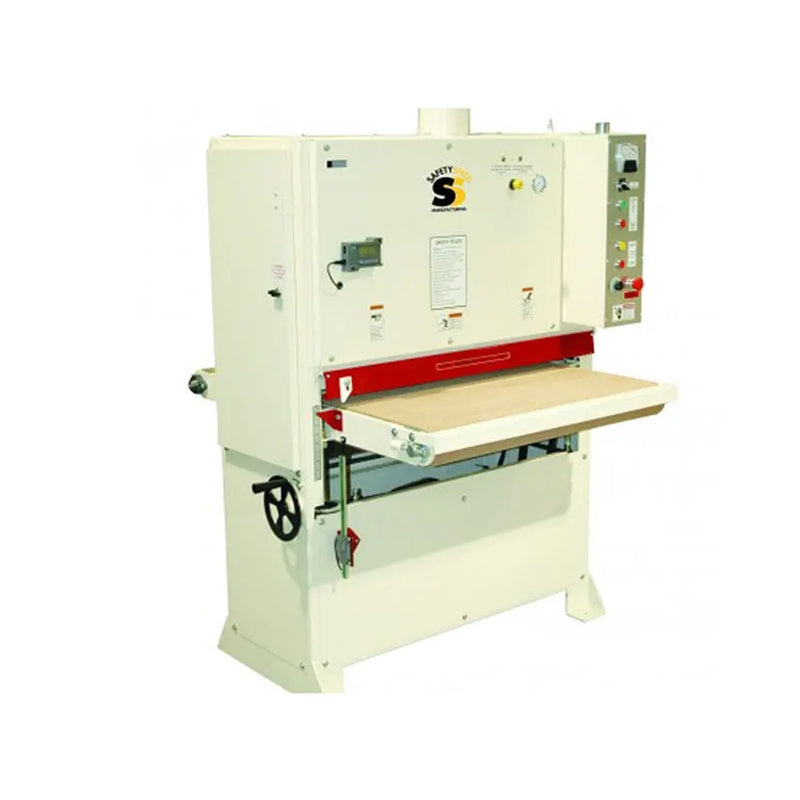

Wide Belt Sander 37" 15 hp, 3 Phase

Safety Speeds 37 x 60 15HP, 3PH (industrial) has many benefits and the features of a much larger machine, all packed into a single unit at a lower cost. USA Made for quality. This machine will improve your finish, decrease your hand sanding and increase your productivity.
Standard

• Photo electric belt tracking
• 2-1/2” Removable platen
• 2 Height adjustments indicators
• 5 Emergency stops
• 2 rubber covered pinch rollers 1-1/2” OD
• Rubber-covered contact roller 4-1/4” OD with 1-3/8” drive bearing
• 2 Machined idler rollers 2-3/16: OD with 3/4” bearings
• Conveyor table set on four ¾” acme-threaded jackscrews
• Pneumatic belt tensioning
• 6” Internal dust chute
• ¾ HP Conveyor motor
• 3 Year Warranty

Features

• Minimum working length: 12”/305mm
• Main Motor: 15HP – 3PH Electrical (industrial)
• Maximum working width: 36”/915mm
• Maximum working thickness: 7-1/4”/184mm
• Minimum working thickness: 1/8”/3mm
• Vacuum requirement: 1000 CFM
• Conveyor speed: 0-18FPM
• Durometer of contact roller: 60
• Sanding belt size: 37” x 60”
• Weight: 1789 lbs.
• Dimensions 60” x 60” x 71”

Safety Speed Manufacturing offers a one-year warranty on parts.
