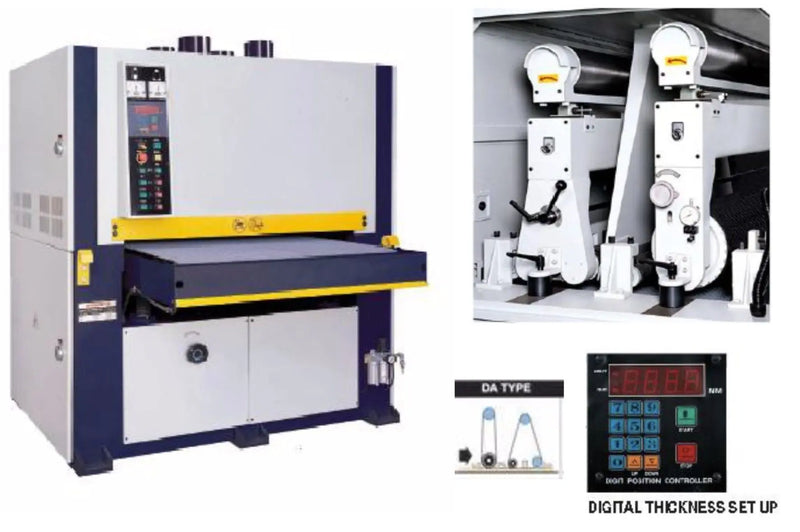

Castaly Wide Belt Sander 37" to 75" [ 2 Heads ]

by Castaly
SKU
Original price $29,990.00 - Original price $44,900.00
Original price
$33,900.00
$29,990.00 - $44,900.00
Current price $33,900.00

Free Shipping

Enjoy Free Shipping on Most Products in Store!

No Sales Tax

No Sales Tax on Your Order Except WY*

Why Shop With Us?

  • Authorized Retailer for Castaly
  • Lowest Prices Online
  • No Sales Tax (Excluding WY Residents)
  • Speak with an Expert Today: 307-222-6334

Options:

  • WS-STDR STEEL CONTRACT DRUM
  • WS-AIRTP PNEUMATIC PLATEN

Features:

  • Rugged heavy-duty sheet metal construction design for durability usage.
  • Powerful industrial motors drive sanding and auto infeed smoothly.
  • Infeed and outfeed are spring-loaded hold down rollers to ensure positive feeding without sanding marks.
  • Combination platen & drum sanding head for best sanding choice such as:
    • With the platen up, the sander functions as a drum only machine, for sanding with a 40 ~
      100 grit belt.
    • With the platen and drum same level, intermediate and final finishing is possible, using a
      grit of 120 ~ 180.
    • With the platen down (below drum), used for the fine finishing or lacquer sealer sanding,
      with 180 ~ 600 grit.
  • Sanding platen with a quick release and lock down design for easy removal or loading of
    graphite platen.
  • Computerized thickness adjustment control with accurate digital readout, just key in the size
    desired and automatic table movement for sanding thickness within 0.005” accuracy.
  • Large size diameter contact drum is dynamically balanced rubber covered spiral grooves,
    designed to provide considerable advantages for the effective removal of material.
  • Special rubber feed belt for safe non-slipping, transporting the workpieces.
  • The abrasive belts are tracked by oscillating cylinders linked to the upper roller. The edge of the
    belt is detected by electric eye sensor which in turn controls the air supply to the position via solenoid value. Also, one limit switch is located on each end top roller of the sandpaper for quick stop in case in the event of belt breakage.
  • Main table designed with the convenient leveling adjustment which ensures greater stability with excellent tolerance providing variable from 0” ~ 5” range sanding thickness.
