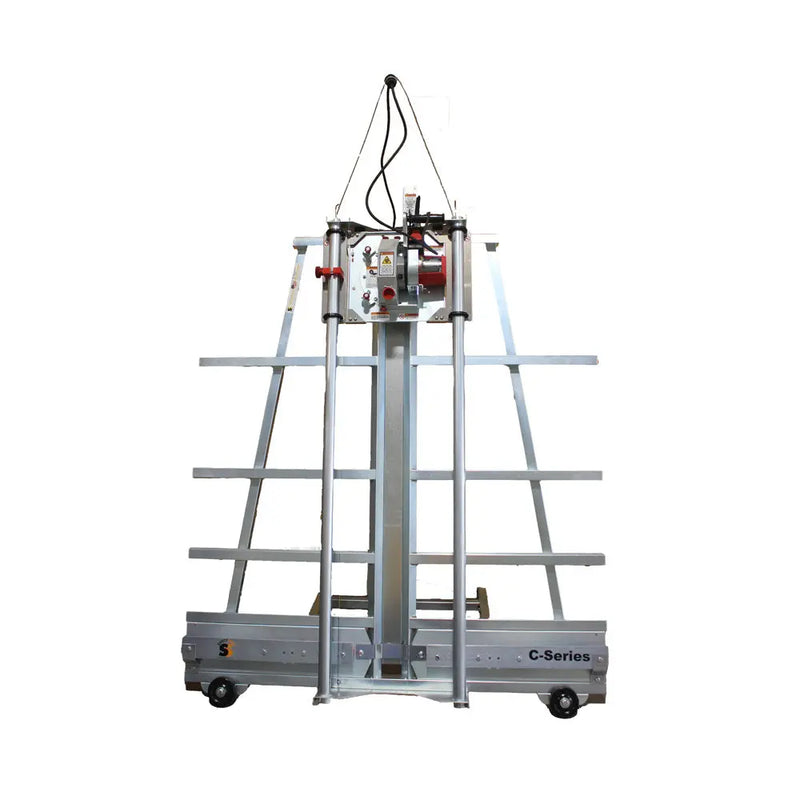

Safety Speed Manufacturing 6480-20C Vertical Panel Saw

The 6480-20C Panel Saw replaces the Milwaukee Tool 6480-20 Panel Saw, a private label that Safety Speed Manufacturing made out of their Minnesota factory for Milwaukee Tool for the last 40 years. The 6480-20C includes a 3.25 horsepower Milwaukee Tool motor.
The 6480-20C is a compact panel saw with a 5’ frame, and a 50” maximum crosscut with a 96” rip cut capacity. Featuring a cut accuracy of 1/32″, and a 1.75″ cut depth, the 6480-20C is eerily similar to our C4 panel saw while having optional accessories built into the price.

Includes

(1) 6480-20C Portable Panel Saw with 50" Crosscut

Technical Data + Specifications

Weight : 189 lbs
Dimensions : 60 × 11 × 70 in
Max. Crosscut : 50"/1270mm
Max. Rip Cut : 96"/2450mm
Cut Depth : 1 ¾"/45mm
Cut Accuracy : 1/32"/.8mm
Frame Length : 60"/ 525mm
Saw Blade Diameter : 8"/210mm
Saw Blade Bore Size : 5/8"
Daily Usage : 1-3 Hours
Rollers : 8
Motor volt and amperage : 15 amp, 120V, 7.5 amps, 220V
Motor Manufacturer : Milwaukee Tool
Machine Footprint : 15sqft
Machine Length : 60"/1525mm
Machine Height : 75"/1900mm
Machine Width with stand attached : 36"/915mm

Benefits + Features

• 3 ¼ Hp, 15 amp industrial, Milwaukee Tool motor.
• Folding Stand

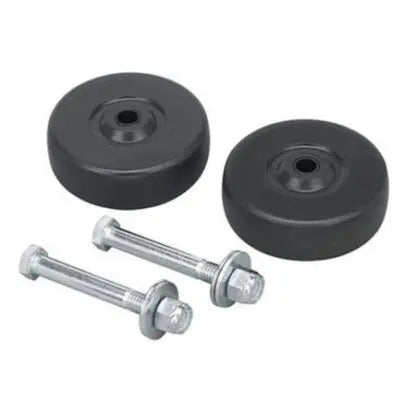

• Wheels
• Zinc plated 1 ¾” steel guide tubes.
• 4 Nylatron roller bearing systems.
• Adjustable vertical and horizontal rulers.
• Quick change from vertical to horizontal cutting.
• Thin material pressure guard.
• Injection-molded plastic material rollers.
• Includes wheels and a folding stand which are optional accessories
• Spring loaded counter balance system.
• Integrated dust collection bonnet.
• Extended warranty.
• TUV certified to UL/CSA standards
