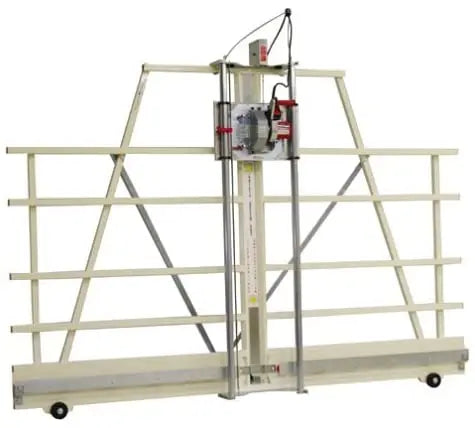

Safety Speed Cut H6 Vertical Panel Saw

The H6 Panel Saw offers full-sized vertical panel saw productivity. The H6 cuts within 1/32” on a wide variety of panel materials up to 1 3/4” thick. The H6 saws are used in all kinds of panel processing applications. This machine will cross cut panels up to 74” tall. The H6 comes standard with a 3 1/4 Hp, 15 amp industrial duty saw motor, adjustable vertical and horizontal rulers, spring loaded counter balance system, quick change from vertical to horizontal cutting.

Includes

(1) Safety Speed H6 Vertical Panel Saw

Technical Data + Specifications

Maximum cross-cut: Safety Speed Cut H6 Vertical Panel Saw
Maximum rip cut: unlimited
Maximum cut thickness: 1¾" (45mm)
Cut Accuracy Straight & Square: 1/32" (08mm)
Saw Blade Diameter: 8" (200mm)
Motor: 120V 15amp
Frame Length: 120" (3050mm)
Shipping Weight: 359 lbs. (163kg)
Height: 98-1/2" (2500mm)
Length: 120" (3050mm)

Benefits + Features

• Low Maintenance Bearing & Guide System - Precise straight square & acurate cuts
• Positioning OF Saw Blade - No casual operator contact; much safer than alternative panel cutting methods. Cuts both vertical and horizontal
• Vertical Positioning For Panels - One person easily handles full-sized sheets accurately and safely
• Simple Controls - Easy operation for all environments
• Industrial-duty Motors - Powerful enough for tough cutting applications
• Material Rollers - Utilizes 3/4" diameter bearings for consistent accuracy & ease of loading and unloading
• Built-in-Rulers - Quick and easy precision cuts - no need to use pencil marks
• Rugged Construction - One-piece steel welded frame. One-piece welded guide tube carriage for consistent accuracy
• 3 1/4 hp 15 amp 120 Volt Industrial-duty Saw Motor
• Zinc-plated 1 3/4" Steel Guide Tubes
• 4 Nylatron Roller Bearing Systems
• Adjustable vertical and horizontal Rulers
• Quick change from vertical to horizontal cutting
• Thin Material Pressure Guard
• Injection-molded Plastic Material Rollers
• Spring-loaded Saw Counterbalance System
