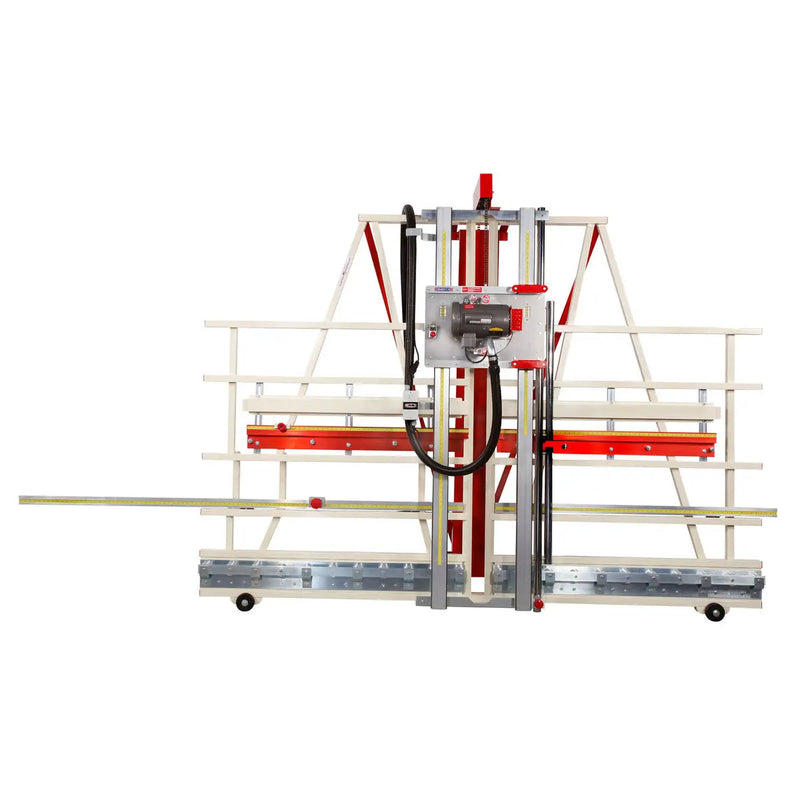

Safety Speed Cut 7400M 3HP, 3~ 230V Continuous Production Panel Saw w/10' Frame

Welcome to cutting at the highest production and accuracy level. If continuous sawing and tight tolerance is required for your operation, these units will deliver. Every component of this saw represents quality and performance. Showcasing 3 Hp, 3~ heavy duty induction motors, heavy extruded beams with precise dual-vee bearings, and the sturdiest frame on the market, these powerhouse machines will deliver cutting accuracies to 0.005” guaranteed.

Includes

(1) Safety Speed 7400M Panel Saw

Technical Data + Specifications

Max. Cross-cut: 64" (1625mm)
Max. Rip Cut: Unlimited
Max. Cut Thickness: 2 1/8" (55mm)
Cut Accuracy, Straight & Square: 0.005" (0,13mm)
Saw Blade Diameter: 8" (200mm)
Motor: 3~230V, 11amp
Frame Length: 120" (3050mm)
Shipping Weight: 950lbs (431kg)
Height: 96" (2440mm)
Length: 120" (3050mm)

Benefits + Features

• LOW MAINTAINANCE BEARING & GUIDE SYSTEM - Precise straight, square & acurate cuts
• POSITIONING OF SAW BLADE - No casual operator contact; much safer than alternative panel cutting methods. Cuts both vertical and horizontal

• VERTICAL POSITIONING FOR PANELS - One person easily handles full-sized sheets accurately and safely

• SIMPLE CONTROLS - Easy operation for all environments

• INDUSTRIAL-DUTY MOTORS - Powerful enough for tough cutting applications

• MATERIAL ROLLERS - Utilizes 3/4" diameter bearings for consistent accuracy & ease of loading and unloading

• BUILT-IN RULERS - Quick and easy precision cuts - no need to use pencil marks

• RUGGED CONSTRUCTION - One-piece stell welded frame. One-piece welded guide tube carriage for consistent accuracy

• 3 Hp, 3~ continuous duty induction saw motor.
• Welded steel frame and integrated stand system.
• Dual V-track precision guide system.
• Adjustable vertical and hori- zontal rulers.
• Quick stop gauges (8′ left, 5′ right).
• Saw blade. Quick change from vertical to horizontal cutting.
• Floating pressure saw foot.
• Solid aluminum material rollers.
• Enclosed counterweight system.
• MID-WAY FENCE™.
• Dust collection ready.
• Hold down bar.
• Wheels.
• 3 year warranty.
• TUV certified to UL/CSA standards
