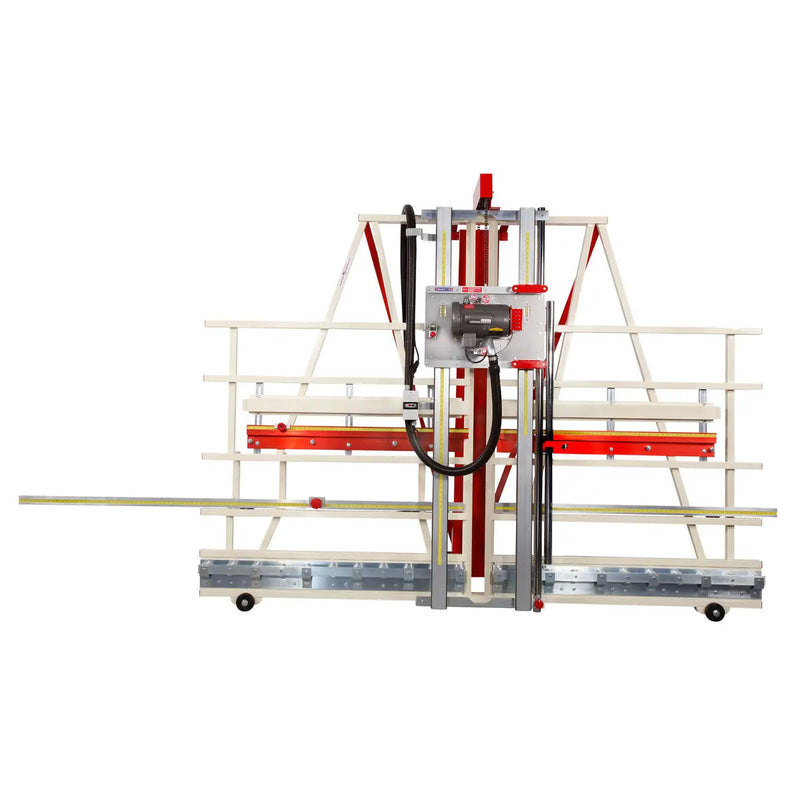

Safety Speed Cut 7400 Panel Saw

Welcome to cutting at the highest production and accuracy level. If continuous sawing and tight tolerance is required for your operation, these units will deliver. Every component of this saw represents quality and performance. Showcasing heavy extruded beams with precise dual-vee bearings, and the sturdiest frame on the market, these powerhouse machines will deliver cutting accuracies to 0.005” guaranteed.

Built with many similarities as the 7000 model including high induction motors, key upgrades on the 7400 & 7400XL include:

• Rigid beams and rugged frame improving cut accuracy
• Our patented MID-WAY® Fence built into the machine
• 22 aluminum material rollers on the 7400
• Tighter cutting tolerance of .005″
• 2.125” depth of cut

Includes

(1) Safety Speed 7400 Panel Saw

Technical Data + Specifications

Max. Cross-cut: 64" (1625mm)
Max. Rip Cut: Unlimited
Max. Cut Thickness: 2 1/8" (55mm)
Cut Accuracy, Straight & Square: 0.005" (0,13mm)
Saw Blade Diameter: 8" (200mm)
Motor: 1~230V, 2 HP
Frame Length: 120" (3050mm)
Shipping Weight: 950lbs (431kg)
Height: 96" (2440mm)
Length: 120" (3050mm)

Benefits + Features

• LOW MAINTAINANCE BEARING & GUIDE SYSTEM - Precise straight, square & acurate cuts
• POSITIONING OF SAW BLADE - No casual operator contact; much safer than alternative panel cutting methods. Cuts both vertical and horizontal

• VERTICAL POSITIONING FOR PANELS - One person easily handles full-sized sheets accurately and safely

• SIMPLE CONTROLS - Easy operation for all environments

• INDUSTRIAL-DUTY MOTORS - Powerful enough for tough cutting applications

• MATERIAL ROLLERS - Utilizes 3/4" diameter bearings for consistent accuracy & ease of loading and unloading

• BUILT-IN RULERS - Quick and easy precision cuts - no need to use pencil marks

• RUGGED CONSTRUCTION - One-piece stell welded frame. One-piece welded guide tube carriage for consistent accuracy

• 2 hp Continuous-duty Induction Saw Motor
• Welded Steel Frame and integrated stand system
• Dual V-track Precision Guide System
• Adjustable vertical & horizontal Rulers
• Quick Stop Gauges (8' left, 5' right)
• Quick change from vertical to horizontal cutting
• Floating pressure Saw Foot
• Solid Aluminum material Rollers
• Enclosed Counterweight System
• Mid-way Fence
• Dust collection ready
• Hold Down Bar
• 1-Year Parts Warranty
• Lifetime Frame Warranty
