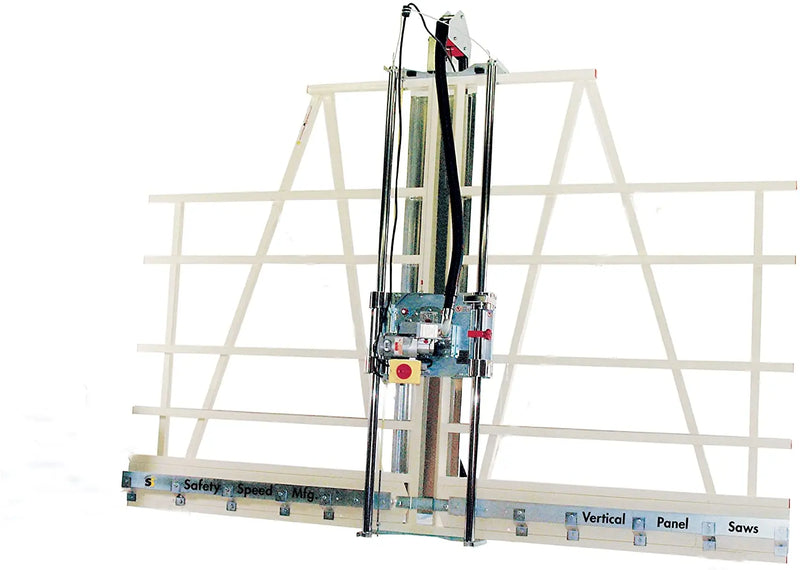

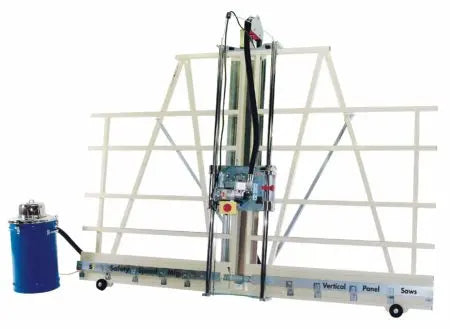

Safety Speed Cut 6800 Vertical Panel Saw
Free Shipping
Enjoy Free Shipping on Most Products in Store!
No Sales Tax
No Sales Tax on Your Order Except WY*
Why Shop With Us?
- Authorized Retailer for Safety Speed
- Lowest Prices Online
- No Sales Tax (Excluding WY Residents)
- Speak with an Expert Today: 307-222-6334
Featuring an upgraded, worm drive motor, and a 74″ maximum crosscut, the 6800 only occupies 30 square feet of floor space. The 6800 makes easily processes a 6′ X 9′ panels up to 1.75″ thick.
Utilizes heavy-duty worm-drive saw motor for production shop service. The additional steel supports in the frame worm driven motor double guide tube bearings and machined aluminum material rollers result in a heavy duty machine with a guaranteed cutting accuracy of 1/64" straight and square. Cuts panels up to 73" wide!
Includes
(1) Safety Speed 6800 Vertical Panel Saw
Technical Data + Specifications
Maximum cross-cut: 73" (1850mm)
Maximum rip cut: Unlimited
Maximum cut thickness: 1¾" (45mm)
Cut Accuracy Straight & Square: 1/64" (04mm)
Saw Blade Diameter: 8" (200mm)
Motor: 120V 13amp
Frame Length: 10' (3050mm)
Shipping Weight: 660lbs (299kg)
Height: 98-1/2" (2500mm)
Length: 120" (3050mm)
Benefits + Features
- LOW MAINTAINANCE BEARING & GUIDE SYSTEM - Precise straight square & accurate cuts
- POSITIONING OF SAW BLADE - No casual operator contact; much safer than alternative panel cutting methods. Cuts both vertical and horizontal
- VERTICAL POSITIONING FOR PANELS - One person easily handles full-sized sheets accurately and safely
- SIMPLE CONTROLS - Easy operation for all environments
- INDUSTRIAL-DUTY MOTORS - Powerful enough for tough cutting applications
- MATERIAL ROLLERS - Utilizes 3/4" diameter bearings for consistent accuracy & ease of loading and unloading
- BUILT-IN RULERS - Quick and easy precision cuts - no need to use pencil marks
- RUGGED CONSTRUCTION - One-piece stell welded frame. One-piece welded guide tube carriage for consistent accuracy
- 3 hp Worm-drive Heavy-duty Saw Motor
- 10' Welded Steel Frame
- Chrome-plated 1 3/4" Guide Tubes
- 8 Nylatron Roller Bearing Systems
- Adjustable vertical & horizontal Rulers
- Quick change from vertical to horizontal cutting
- Thin Material Pressure Guard
- Solid Aluminum material Rollers
- Enclosed Counterweight System
