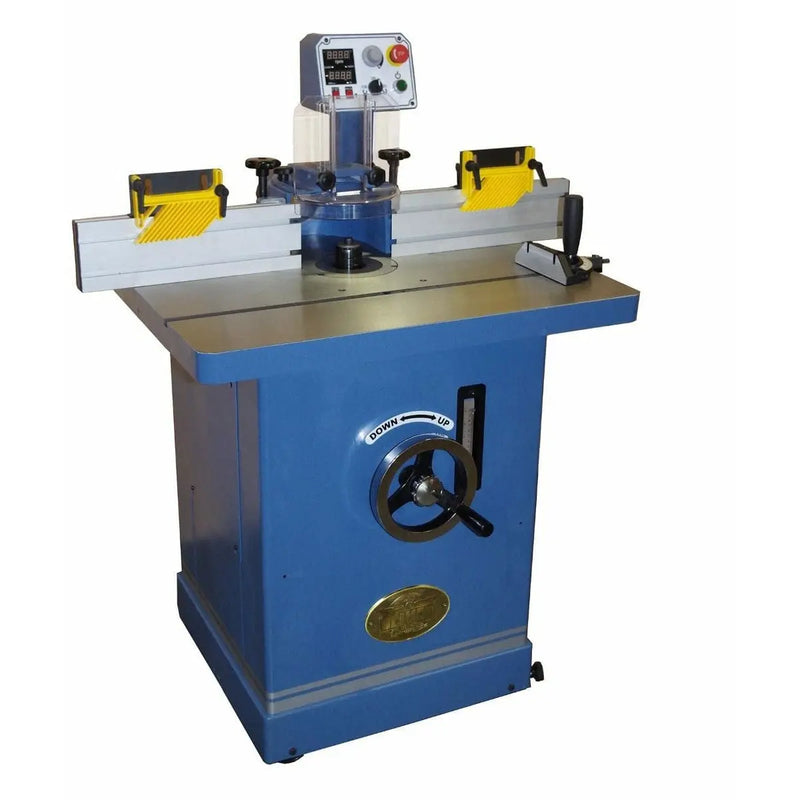

Oliver Machinery Variable Speed Shaper - 10047VS
Elevate your shaping game to new heights with the Oliver Machinery Variable Speed Shaper - 10047VS. This top-of-the-line powerhouse combines unmatched power, unparalleled versatility, and cutting-edge variable speed control, making it the ultimate choice for professional woodworkers, serious hobbyists, and demanding projects.
Engineered for Exceptional Shaping:
- Unwavering Power: The robust 3HP single-phase TEFC motor tackles even the toughest hardwoods and intricate shapes with ease, ensuring smooth cuts and effortless performance.
- Precision-Ground Cast Iron Table: The expansive 42" x 28" cast iron table provides a rock-solid base for handling projects of all sizes, guaranteeing stability and accuracy.
- Interchangeable Spindle: Choose from the included 1-1/4" spindle or optional sizes (3/4", 7/8", 1") to seamlessly match your project requirements. Router bit collets offer further versatility.
- Variable Speed Control: Fine-tune your shaping approach with the innovative variable speed drive, offering a dynamic range from 5,000 to 10,000 RPM. Achieve optimal cutting speeds for various materials and applications, maximizing control and results.
- Poly V-Belt Drive: Experience smoother operation and reduced vibration with the reliable Poly V-belt drive system.
- Spindle Reverses for More Options: Gain added control and tackle intricate cuts with the reversible spindle functionality.
- Four Inches of Spindle Travel: Enjoy increased flexibility and handle a wider range of shaping applications with the generous 4" spindle travel.
- Starting Pin Included: Create irregular shapes with ease and accuracy thanks to the included starting pin.

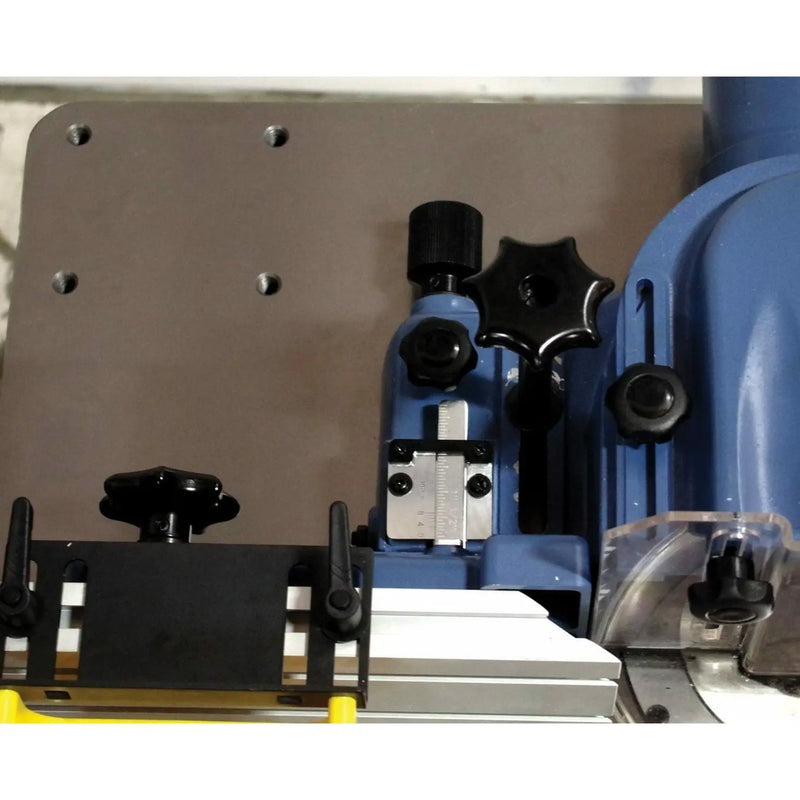

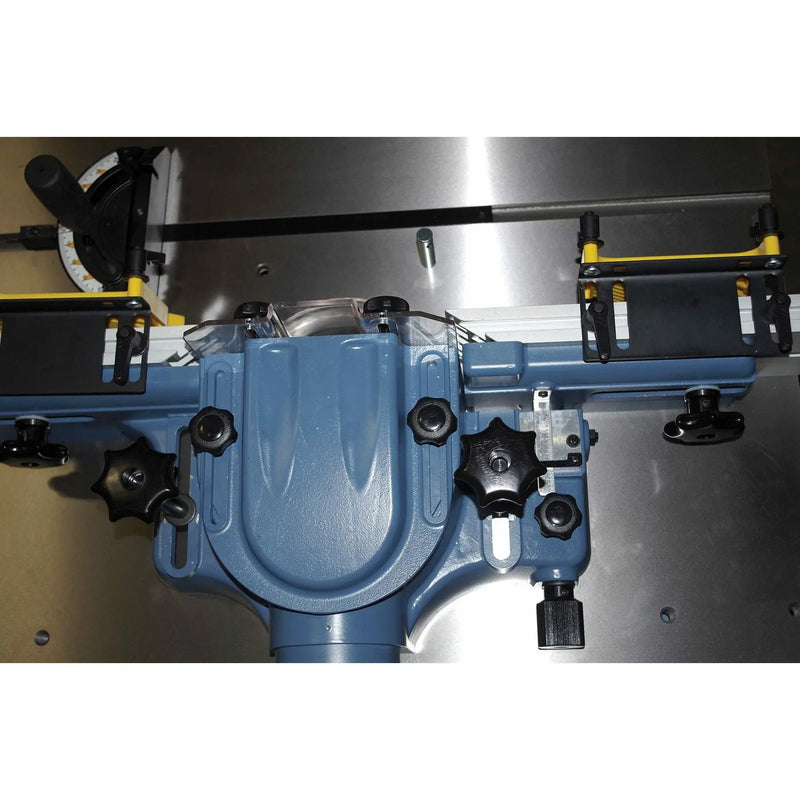

- Independent Fence with Micro Adjustments: Achieve precise control and consistent results with the independent fence featuring micro adjustments.
- Adjustable Hold Downs: Enhance safety and ensure secure workpiece positioning with the adjustable hold downs.

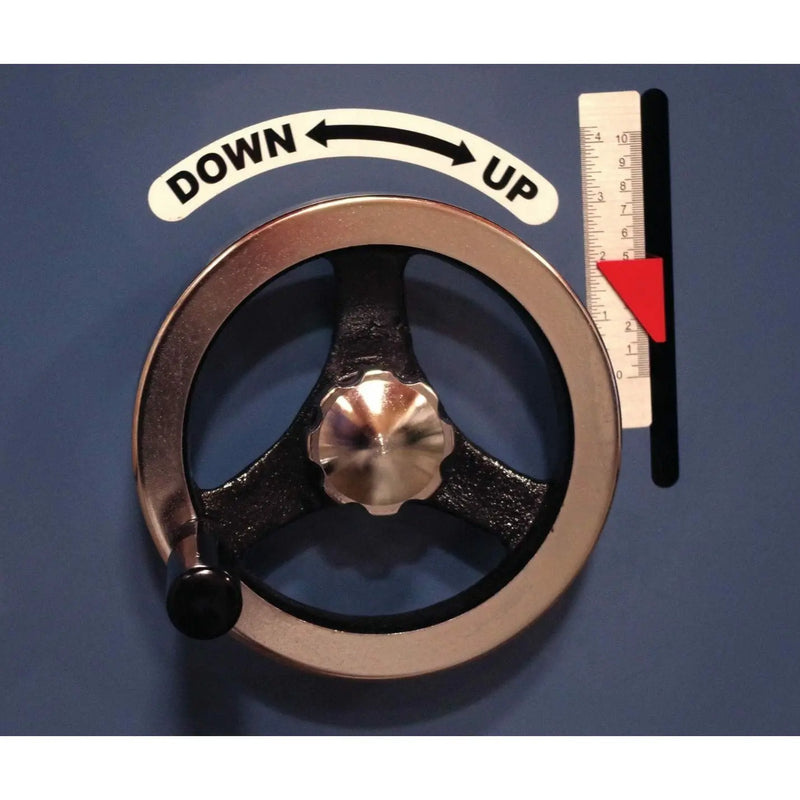

- Extra Large Hand Wheel: Effortlessly adjust table height for optimal cutting positions with the convenient extra large hand wheel.
- Miter Gauge Included: Perform accurate angled cuts with the included miter gauge.
- Digital Readout (DRO): (Optional) Gain ultimate precision with the optional DRO displaying both spindle RPM and spindle height for unmatched control and repeatability.
- Magnetic Controls: Benefit from enhanced safety and ease of use with the magnetic controls.
Ideal for:
- Professional Woodworkers: Tackle demanding shaping tasks with confidence and achieve flawless results on every project.
- Cabinetmakers and Furniture Builders: Craft high-quality furniture components with intricate details and precise shaping.
- Serious Hobbyists: Take your woodworking skills to the next level with the power, versatility, and control of a professional-grade shaper.
- Woodworking Schools and Shops: Provide students with the tools and experience necessary to master advanced shaping techniques.
Features
- Variable Frequency Drive provides 5,000 to 10,000 Spindle RPM.

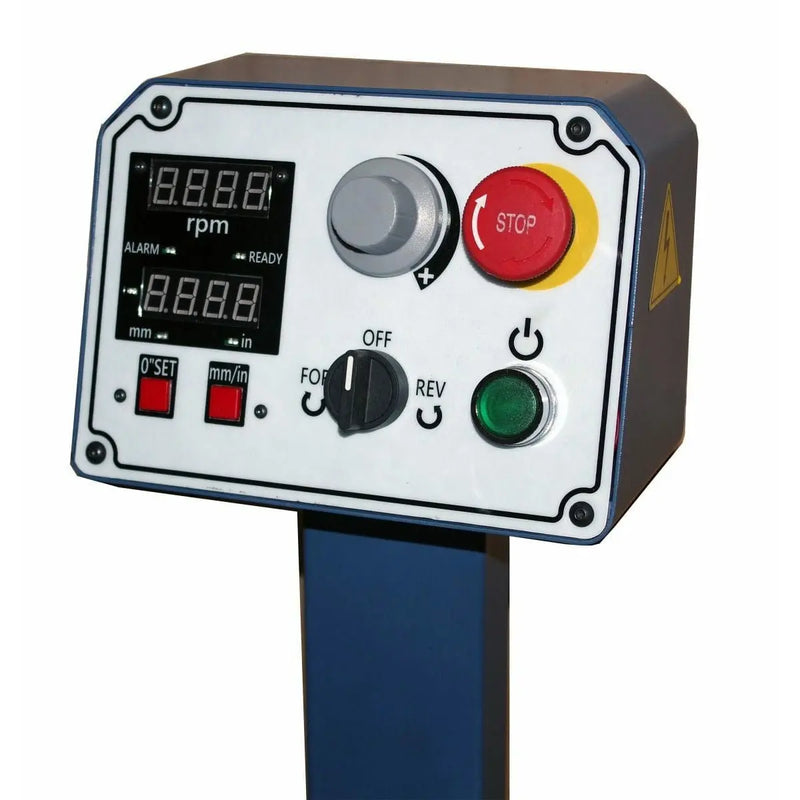

- Elevated control panel with DRO, emergency stop, and speed control.
- DRO measures spindle RPM and spindle height.
- Large cast iron table is precision ground to provide a solid work surface.
- Table features pre-drilled and threaded holes for optional power feeder.
- Full cabinet stand includes wheels and locks.
- 1-1/4” interchangeable spindle included, other optional sizes available.
- Optional router bit collets available.
- Poly V-belt drive for smoother operation.
- Spindle reverses for more options with each set-up.
- Four inches of spindle travel allows more set-up options.
- Starting pin for irregular shapes included.
- Fence is independent and includes micro adjustment.
- Adjustable hold downs add to a safer operation.
- Extra large handwheel for easy and quick height adjustment.
- Miter gauge included.
- Powerful TEFC motor to meet your needs.
Specifications
| Model Number | 10047VS |
|---|---|
| Stock No. (3HP, 1Ph) | 10047VS.001 |
| Spindle Speeds | 5,000 to 10,000 RPM |
| Spindle Diameter: | 1-1/4” |
| Verticle Spindle Travel: | 4" |
| Spindle Direction: | Reversible |
| Under Nut Capacity: | 4" with 1-1/4" Spindle |
| Table Opening: | 6-1/4” |
| Large Insert Opening: | 4-5/16” |
| Small Insert Opening: | 2-1/2” |
| Table Height | 34-3/8" |
| Table Size | 32” x 26” |
| T-Slot: | 3/4" x 3/8" |
| Fence Size (2): | 4-13/16” x 16” |
| Dust Port Diameter | 4" |
| Minimum CFM: | 800 |
| Motor 1Ph | 3HP, 220V only (8 Amp) |
| Net Weight | 396 lbs. |
| Gross Weight | 511 lbs. |
