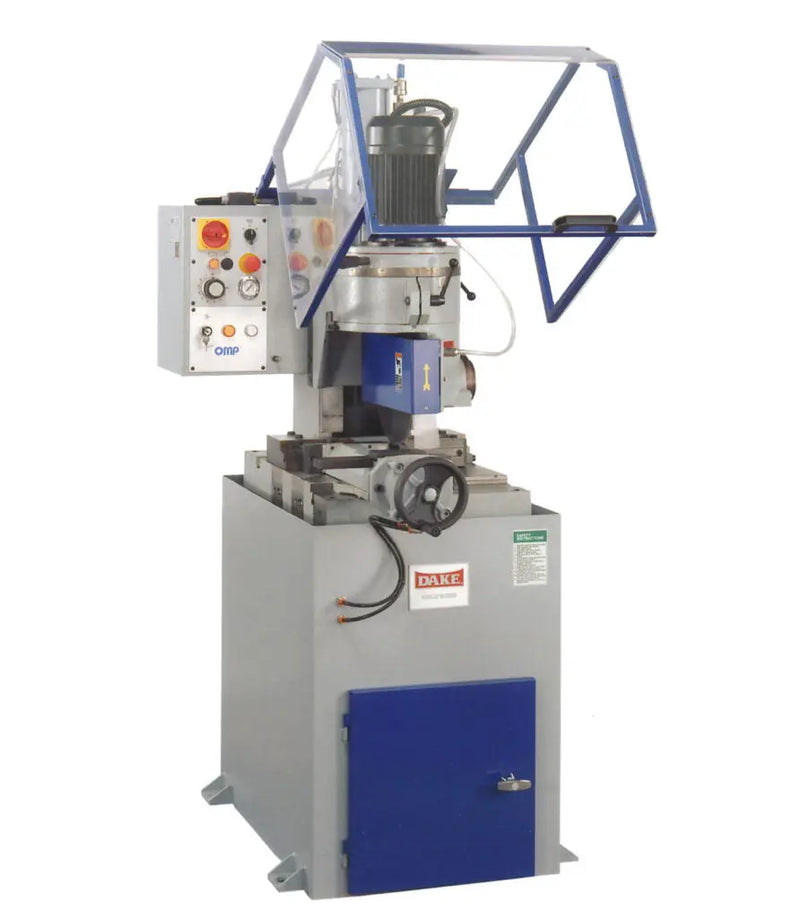

Dake SEMI-Automatic Cold Saws
by Dake
SKU 976202-2
Original price
$14,195.00
-
Original price
$21,495.00
Original price
$21,495.00
$14,195.00
-
$21,495.00
Current price
$21,495.00
Free Shipping
Enjoy Free Shipping on Most Products in Store!
No Sales Tax
No Sales Tax on Your Order Except WY*
Why Shop With Us?
- Authorized Retailer for Dake
- Lowest Prices Online
- No Sales Tax (Excluding WY Residents)
- Speak with an Expert Today: 307-222-6334
Model 370S-L Non-Ferrous
14-1/2" Blade
Semi-automatic non-ferrous saw that’s user friendly for set up and operation. Featuring two removable surface wear plates, heads that rotate 45º, three gib guides, and a manual oiler.
440V model requires step-down transformer for operation (part number: 300674) Sold Separately
Features
- Outboard section of the table is designed so shorter lengths tumble down a mesh discharge chute
- Manual oiler to lubricate 1″ thick, hardened vertical ways
- 3.5/4.5 HP motor has the muscle to drive a 14-1/2″ or 12″ blade quickly and quietly through solids
- Clear acrylic hood has shock assists for raising and lowering and electrical interlocks
- Table features two removable surface wear plates to support longer cut lengths
- Three gib guides for the cutting head with two adjustable cast iron gib blocks in each for increased cutting accuracy and easy adjustment
- Rear surface of the gearbox is machined with interlocking circles to evenly distribute oil over the ways
- Large automatic clamping vise features adjustable gib guides, removable face plates, and an anti-burr arm
- Swap cutting head to gain non-ferrous/ferrous option on same saw
- Ability to add a programmable feed system to make fully automatic with wide range of capabilities
Model Options
- 300128 – Ferrous Cutting Head
- 79917 – Non-Ferrous Cutting Head
- 301644 – Loading Table
- 301645 – Unloading Table
- 300196 – Second Main Vice
- 77178 – Mist Kit
Standard Equipment
- Blade
- Coolant
- Saw blade selector calculator
- Tools kit for changing blades
- Instruction and service manual
- Adjustable positive stop
| Model Number | 370S-L NON-FERROUS | |
|---|---|---|
| Part Number | 976202-2 | |
| Voltage | 220V | |
| Horsepower | 3.5/4.5 | |
| Cutting Ability | Non-Ferrous / Plastic | |
| Maximum Blade Diameter (in) | 14-1/2 | |
| Maximum Vise Opening (in) | 8-3/4 | |
| Maximum Feed Vise Opening | n/a | |
| Maximum Angle | 45° Left | |
| Slotting | No | |
| Phase | 3 | |
| Speeds (rpm) | 1,500/3,000 | |
| Weight (lbs) | 1,360 | |
| Solid Round 90˚ Capacity (in) | 4-1/4 | |
| Solid Round 45˚ Capacity (in) | 3-5/8 | |
| Tube 90˚ Capacity (in) | 5-1/16 | |
| Tube 45˚ Capacity (in) | 5 | |
| Square 90˚ Capacity (in) | 4-1/4 | |
| Square 45˚ Capacity (in) | 3-7/8 | |
| Rectangle 90˚ Capacity (in) | 4 x 7 | |
| Rectangle 45˚ Capacity (in) | 4 x 6 | |
| Work Height (in) | 35 | |
| Height (in) | 73 | |
| Width (in) | 28 | |
| Depth (in) | 39 | |
