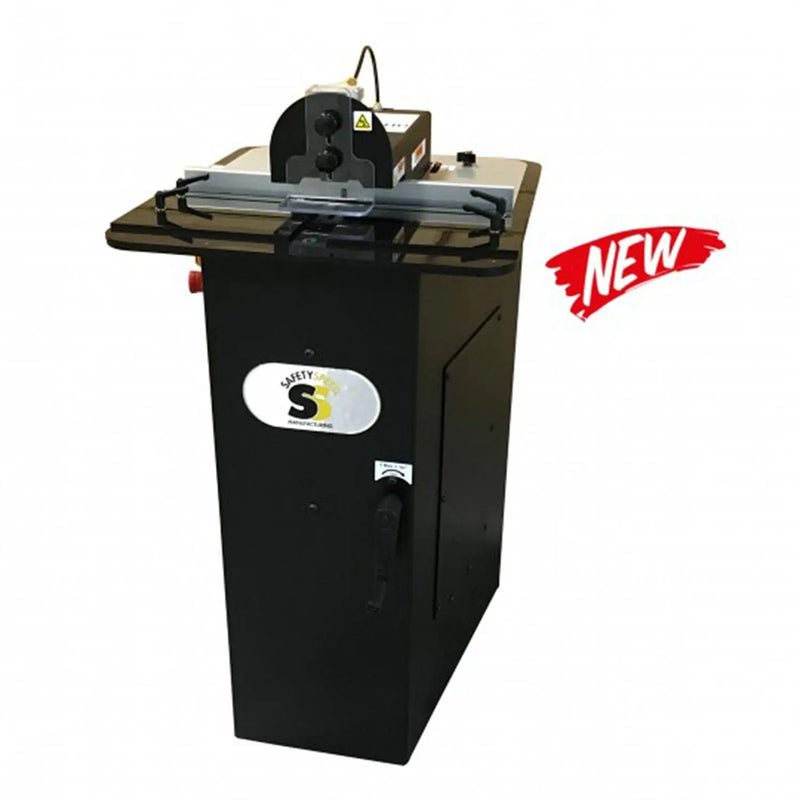

Safety Speed Screw Pocket Machine SPM301HD

SKU SPM301HD
Original price $0
Original price $8,199.00 - Original price $8,199.00
Original price
Current price $8,199.00
$8,199.00 - $8,199.00
Current price $8,199.00
Starting at $342/mo or 0% APR with . See if you qualify

✔ Authorized Dealer for Safety Speed
✔ Lowest Prices! MARCH MADNESS SALE 6% OFF Code: SAWTOOTH
✔ No Sales Tax (Excluding WY & FL Residents)
✔ Chat with an Expert or Call/Text: 307-222-6334

Description

The SPM301HD features a heavy-duty, direct drive continuous electric spindle motor for those jobs that just keep on coming. Unlike others of its kind, the SPM301HD features cam-driven action providing fast, smooth cutting action under complete mechanical control throughout the machine cycle. The new pilot air drill and end mill produce superior low-angle 6 degree screw pockets. Requires standard 220V and 6.2 CFM at 90 PSI based on 25% load factor, 25% duty cycle.


Specifications:

  • Weight 294 lbs
  • Dimensions 32 x 22 x 44in
  • Crated Dimensions
  • 36" × 28" × 49"
  • Vacuum Diameter Required - 3" Hose Connection
  • Vacuum CFM Required - 220 CFM
  • Air Requirement - 6.2 CFM at 90 PSI (Rating based on 25% load factor, 25% duty cycle)
  • Spindle Motor - 5 amp/18,000 RPM, 3/8" (ER20) Collet
  • Screw Pocket Angle - Six Degrees
  • Spindle Motor Amps - 5 amps
  • Spindle Motor Collet - 3/8” Collet
  • Spindle Motor Max RPM - 18,000
  • Air Drill - 7HP
  • Air Drill Collet - 1/4" Collet
  • Air Drill Max RPM - 25,000
  • Screw Pocket Depth Range - .5" to 1.5"

220V Electrical and 30 CFM compressed air at 80PSI required for use

Warranty Information

Safety Speed Manufacturing offers a 1 year warranty on parts.
