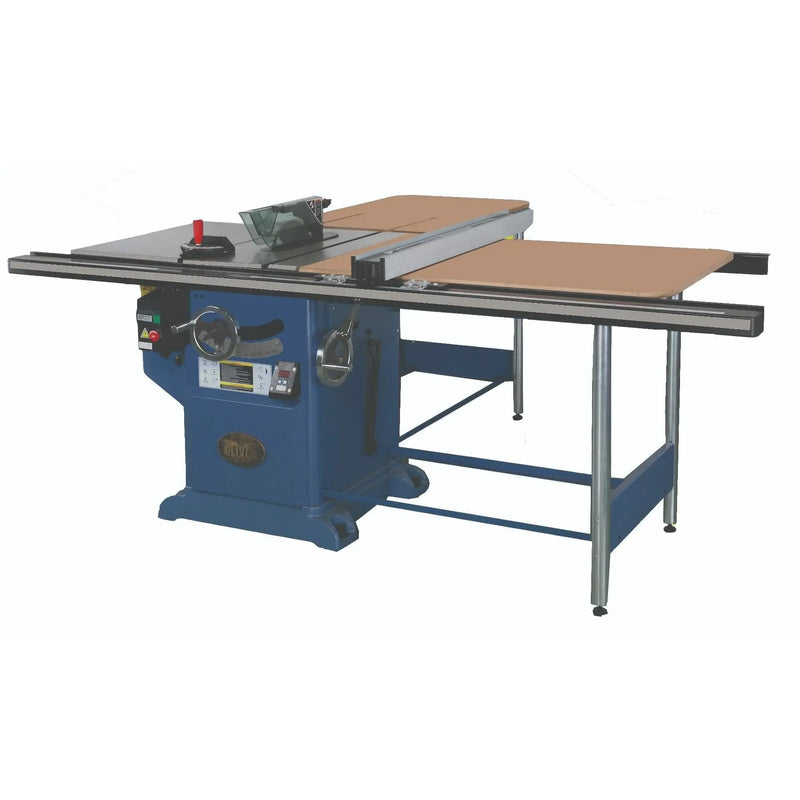

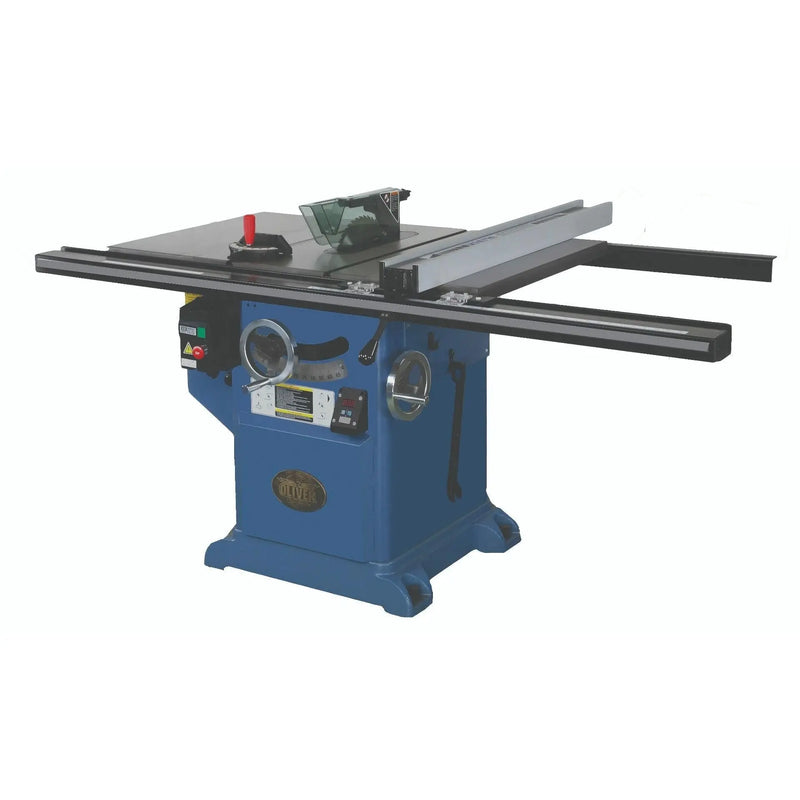

Oliver Machinery 12” Single Phase 5 HP Professional Heavy-Duty Table Saw
Unleash your woodworking potential with the Oliver Machinery 12" Single Phase 5 HP Professional Heavy-Duty Table Saw. This industrial-grade powerhouse is designed for demanding tasks, delivering exceptional power, unwavering precision, and unmatched durability. Whether you're a seasoned professional or an ambitious hobbyist, this saw will elevate your woodworking projects to new heights.
Features
- Large precision ground table provides a stable work surface.
- Cast iron base offers a steady platform.

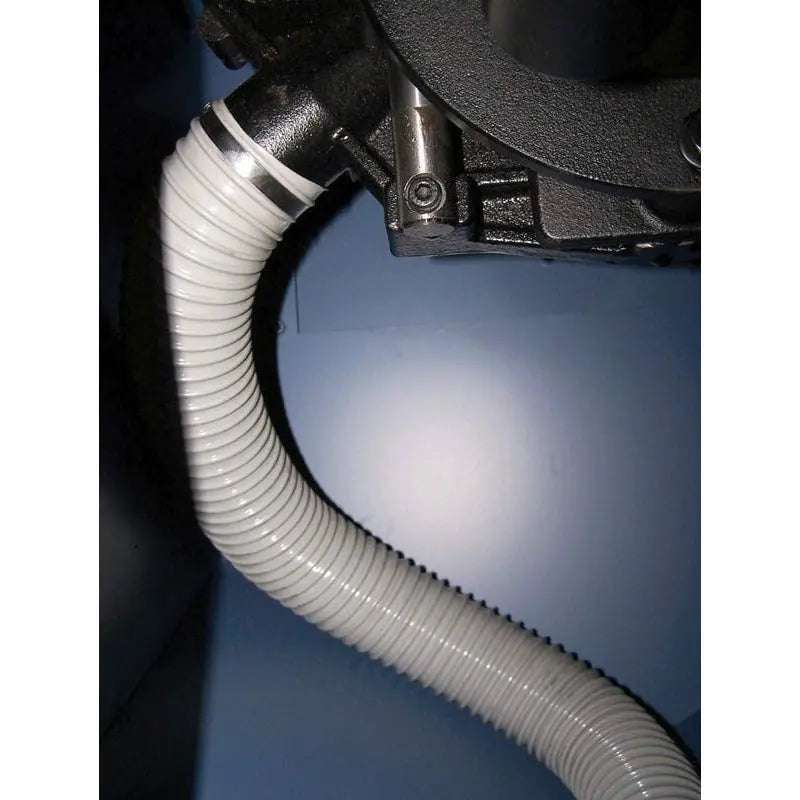

- Fully enclosed cabinet and blade dust shroud for better dust management.
- Precision ground 1” arbor.
- Wide stance trunnion features a left tilt blade.
- Poly V-belt drive smoothly transfers power to the blade.
- Hydraulic assisted blade lift mechanism for easy movement.
- Large chrome hand wheels allow easy movement./

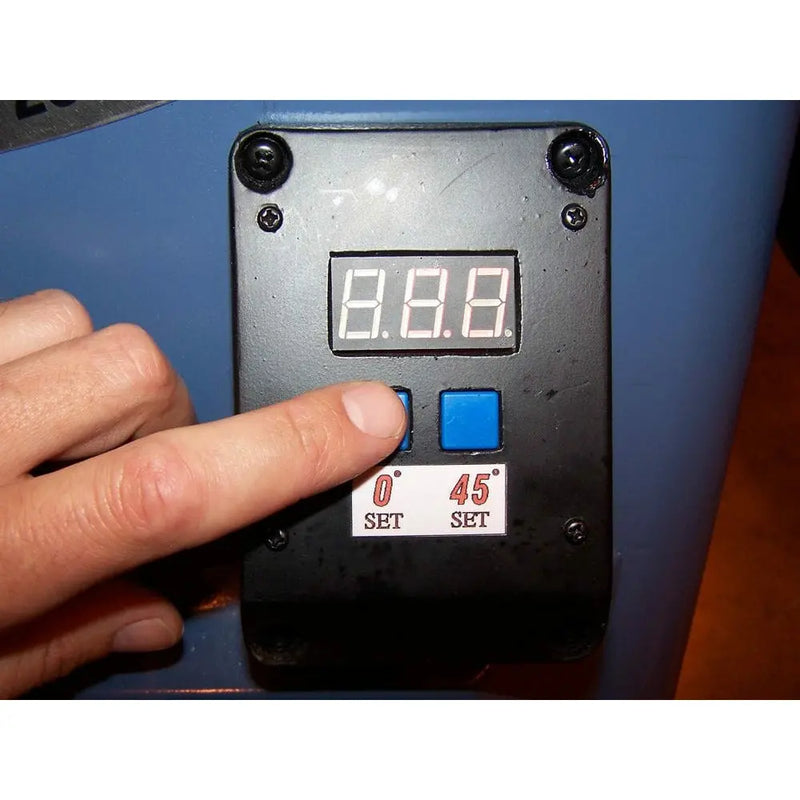

- Includes digital readout of blade tilt.
- Riving knife splitter for added safety against kick-back.
- Optimus T-square fence available in 36” or 52” rip capacity.
- 36” rail includes (2) cast iron extension wings.
- 52” rail includes wood side table and (1) cast iron extension wing.
- Optional rear support table available.
- Magnetic controls with emergency off switch.
- Powerful TEFC motor available in single or three-phase.

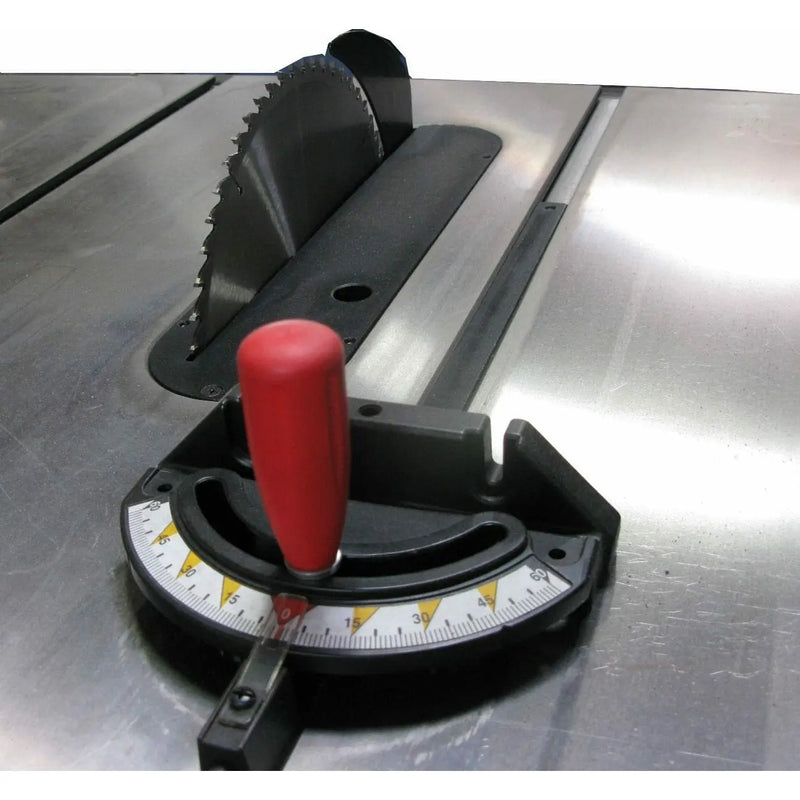

- Miter gauge included.
- Blade not included.
Specifications
| Model Number | 4045 |
|---|---|
| Stock Number | 0 |
| Stock No. (5HP, 1Ph) | 4045.003 |
| Stock No. (7.5HP, 3Ph) | 4045.004 |
| Blade Diameter | 12" |
| Arbor Diameter | 1” |
| Blade Tilt | Left |
| Arbor Speed | 3,450 RPM |
| Maximum Depth of Cut at 90° | 4" |
| Maximum Depth of Cut at 45° | 2-2/3" |
| Maximum Width of Dado | 13/16" |
| Maximum Cut to Right of Blade | 36” or 52” with side table |
| Maximum Cut to Left of Blade | 12" |
| Dust Port Diameter | 4" |
| Table Dimensions w/o Extensions | 30-3/4”D x 24”W |
| Wing Size | 30-3/4” x 12” |
| Table Height | 36" |
| Motor 1Ph | 5HP, 1Ph, 220V Only (18 Amp) |
| Motor 3Ph | 7.5HP, 3Ph, 220V/440V* Prewired 220V (20/10 Amp) |
| Overall Dimensions | 75”L x 45”W x 41”H |
| Net Weight | 550 lbs. |
| Gross Weight | 750 lbs. |
