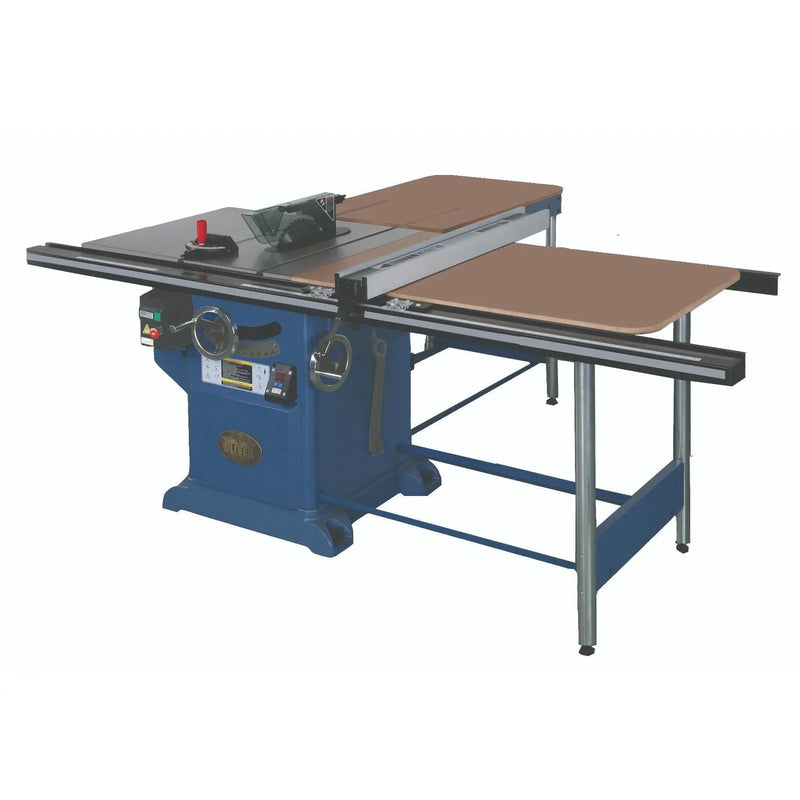

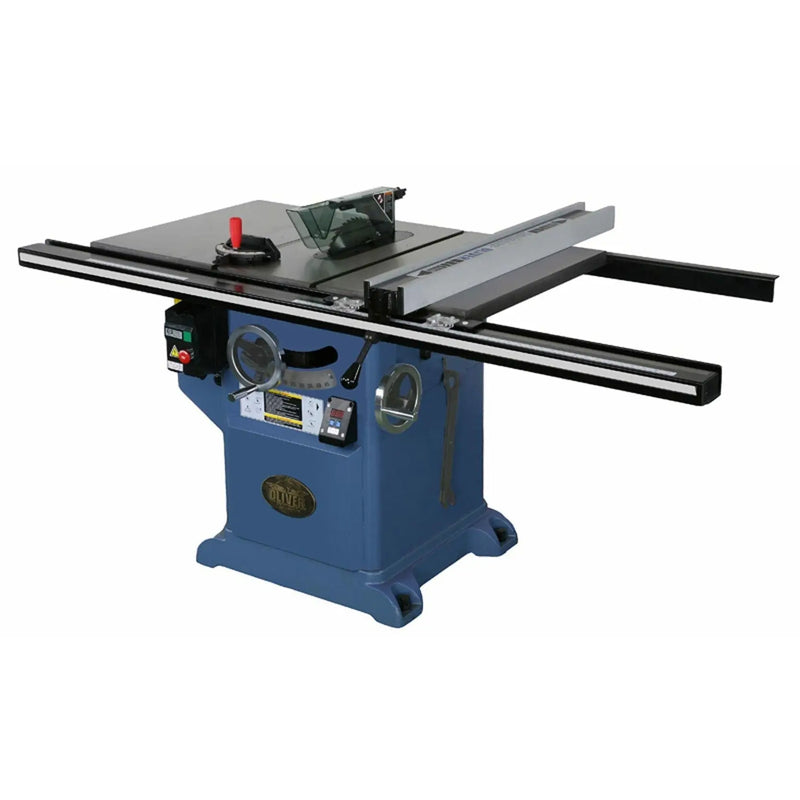

Oliver Machinery 10” Single Phase 5 HP Professional Heavy-Duty Table Saw with 36” Rail 4016.003
Introducing the Oliver Machinery 10” Single Phase 5 HP Professional Heavy-Duty Table Saw with 36” Rail, model number 4016.003 – the epitome of precision, power, and durability in woodworking machinery.
Designed for the most demanding woodworking tasks, this table saw is equipped with a robust 5 horsepower motor, ensuring consistent and reliable performance, even under heavy workloads. Whether you're cutting hardwoods, softwoods, or engineered materials, this machine delivers unparalleled accuracy and efficiency.
The 36” rail provides ample support for large workpieces, allowing you to tackle even the most ambitious projects with ease. Combined with precision engineering and advanced safety features, such as a riving knife and blade guard, this table saw offers peace of mind and unparalleled control while you work.
Features
- Large precision ground table provides a stable work surface.
- Cast iron base offers a steady platform.

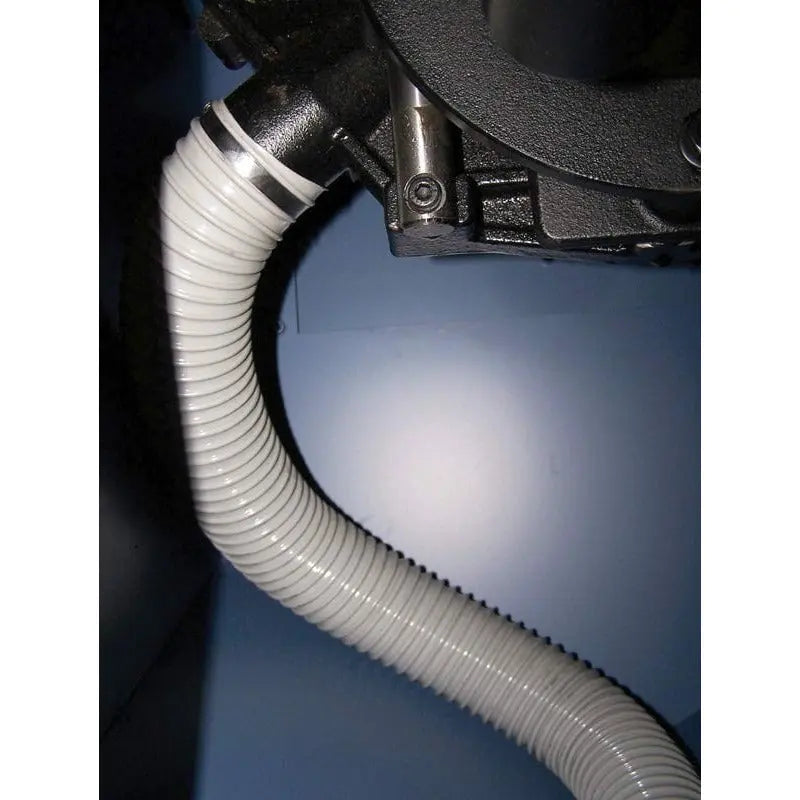

- Fully enclosed cabinet and blade dust shroud for better dust management.
- Precision ground 5/8” arbor.
- Wide stance trunnion features a left tilt blade.
- Poly V-belt drive smoothly transfers power to the blade.
- Hydraulic assisted blade lift mechanism for easy movement.
- Large chrome hand wheels allow easy adjustments.

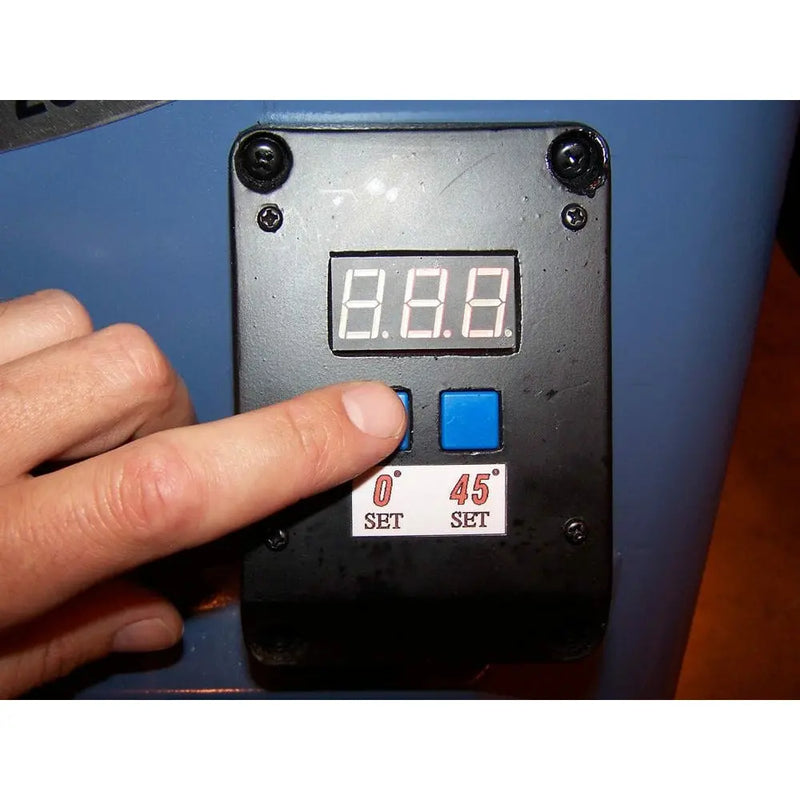

- Includes digital readout of blade tilt.

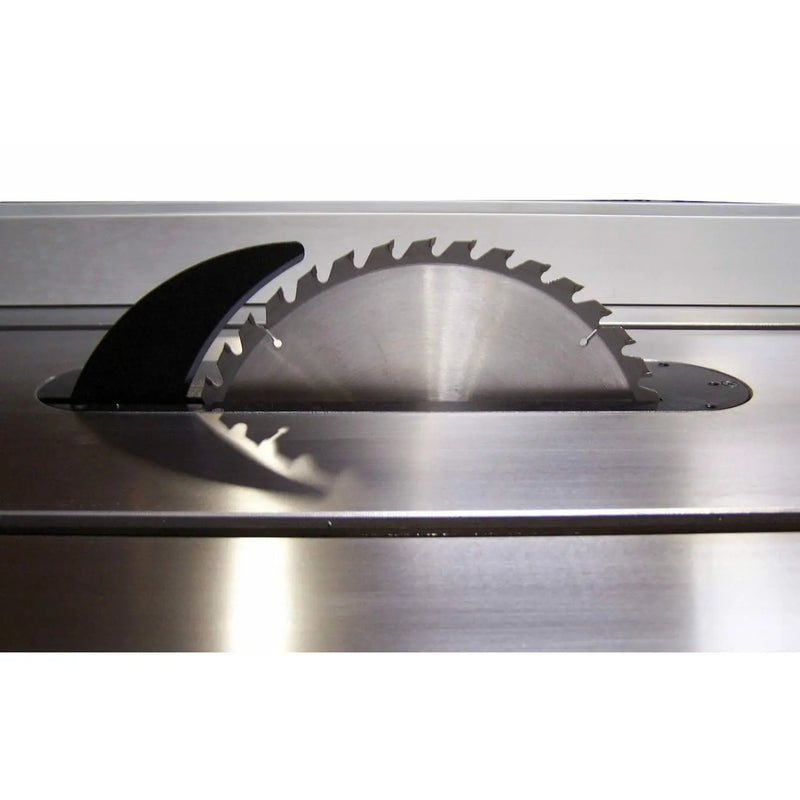

- Riving knife splitter for added safety against kick-back.
- Optimus T-square fence available in 36” or 52” rip capacity.
- 36” rail includes (2) cast iron extension wings.
- 52” rail includes wood side table and (1) cast iron extension wing.
- Optional rear support table available.
- Magnetic controls with emergency off switch.

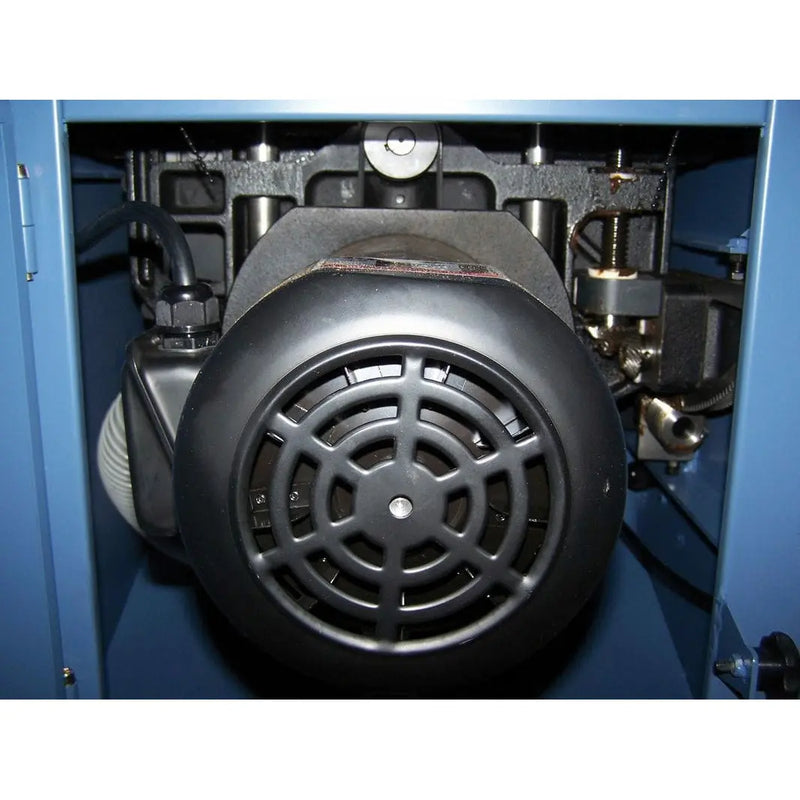

- Powerful TEFC motor available in single or three-phase.

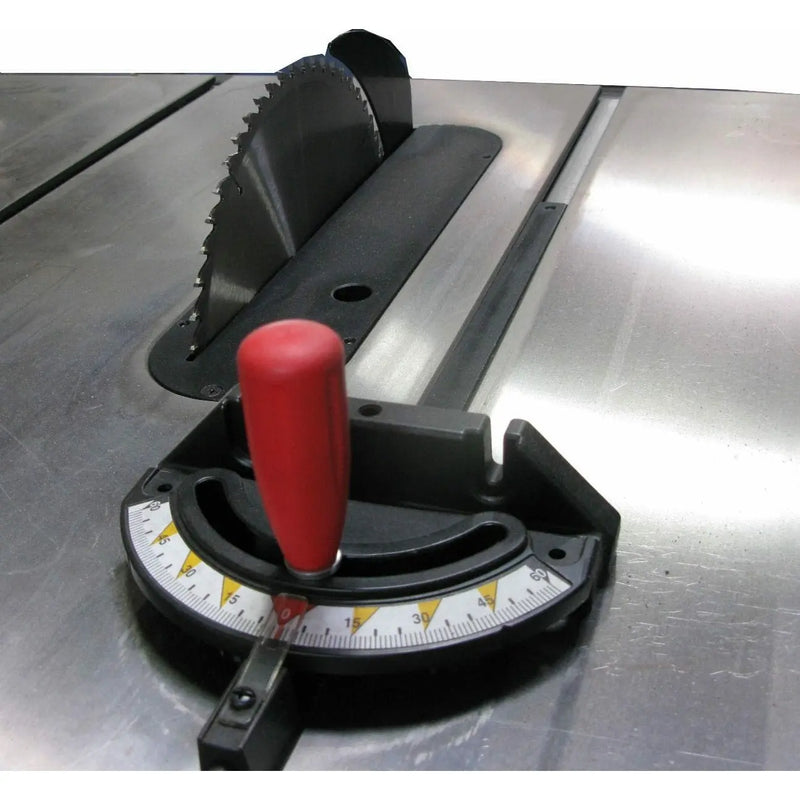

- Miter gauge included.
- Blade not included.
Specifications
| Model Number | 4016 |
|---|---|
| Stock Number | 0 |
| Stock No. (5HP, 1Ph) | 4016.003 |
| Stock No. (5HP, 3Ph) | 4016.004 |
| Blade Diameter | 10" |
| Arbor Diameter | 5/8" |
| Blade Tilt | Left |
| Arbor Speed | 3,450 RPM |
| Maximum Depth of Cut at 90° | 3" |
| Maximum Depth of Cut at 45° | 2-1/4" |
| Maximum Width of Dado | 13/16" |
| Maximum Cut to Right of Blade | 36”or 52” with side table |
| Maximum Cut to Left of Blade | 12" |
| Dust Port Diameter | 4" |
| Table Dimensions w/o Extensions | 27”D x 21-1/4”W |
| Wing Size | 27” x 12” |
| Table Height | 36" |
| Motor 1Ph | 5HP, 1Ph, 220V Only (18 amps) |
| Motor 3Ph | 5HP, 3Ph, 220V/440V* Prewired 220V (15/7.5 Amp) |
| Overall Dimensions | 74”L x 32-½”W x 40”H |
| Net Weight | 480 lbs. |
| Gross Weight | 720 lbs. |
