Description

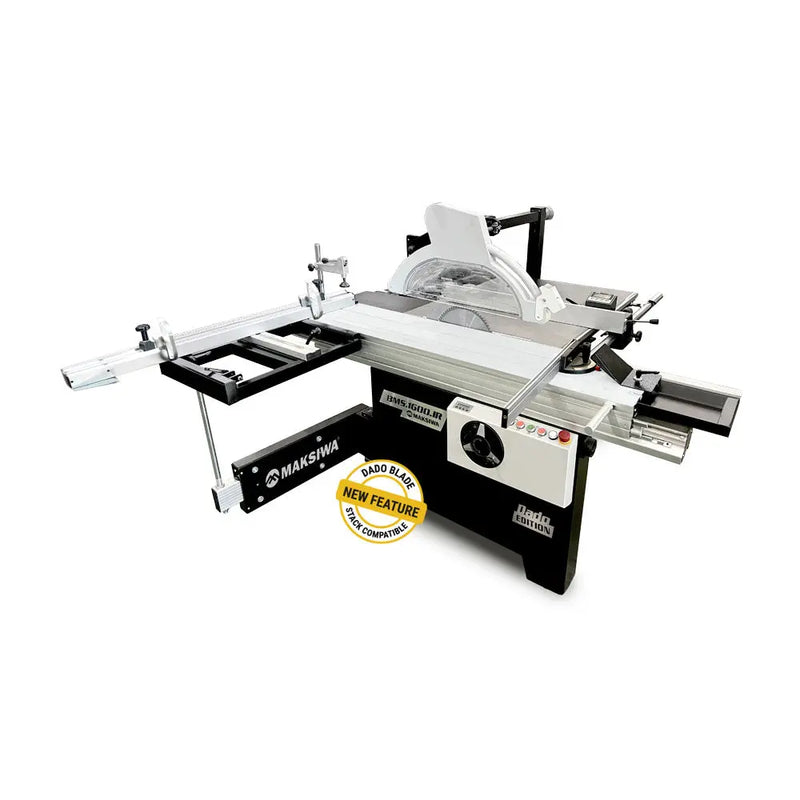

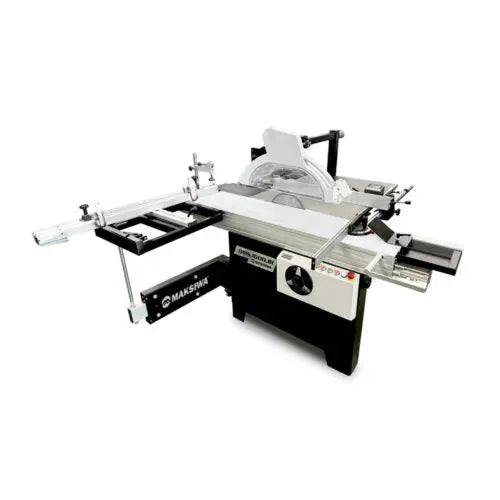

Sometimes, you just can’t fit a full 10’ slider in your shop. Maksiwa is always listening to woodworkers, for this reason, we are introducing our smallest sliding panel saw to you. The new BMS.1600.IR is almost half of the size with the same 5 HP and blade capacity as the bigger BMS.3200.IR
General
- Sliding table dimension: 63” x 14”

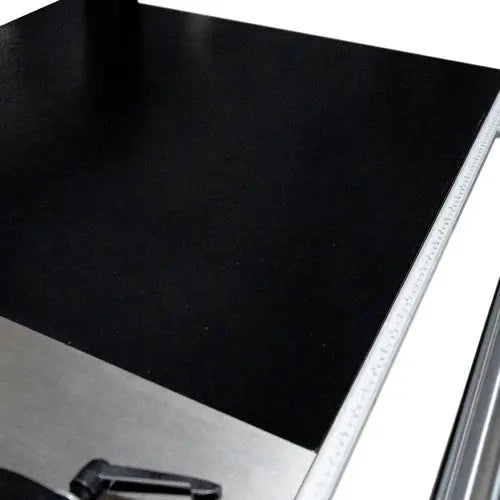

- Main table with supporting table: 31.5” x 40”
- Crosscut Fence Max. Collapsed: 50”
- Crosscut Fence Max. Extended: 85”

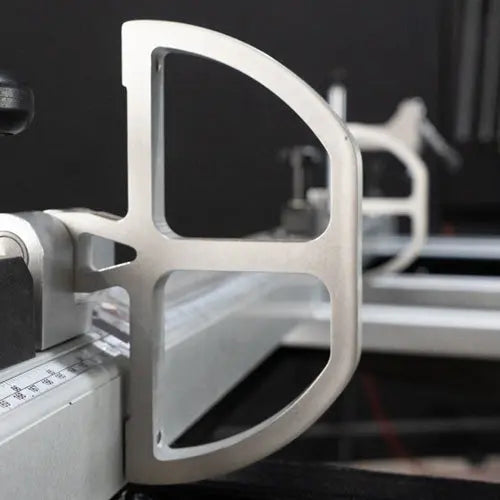

- Crosscut Fence Flip Stopper: 1
- Rip Fence bar Solid Steel Micro Polished: 1”

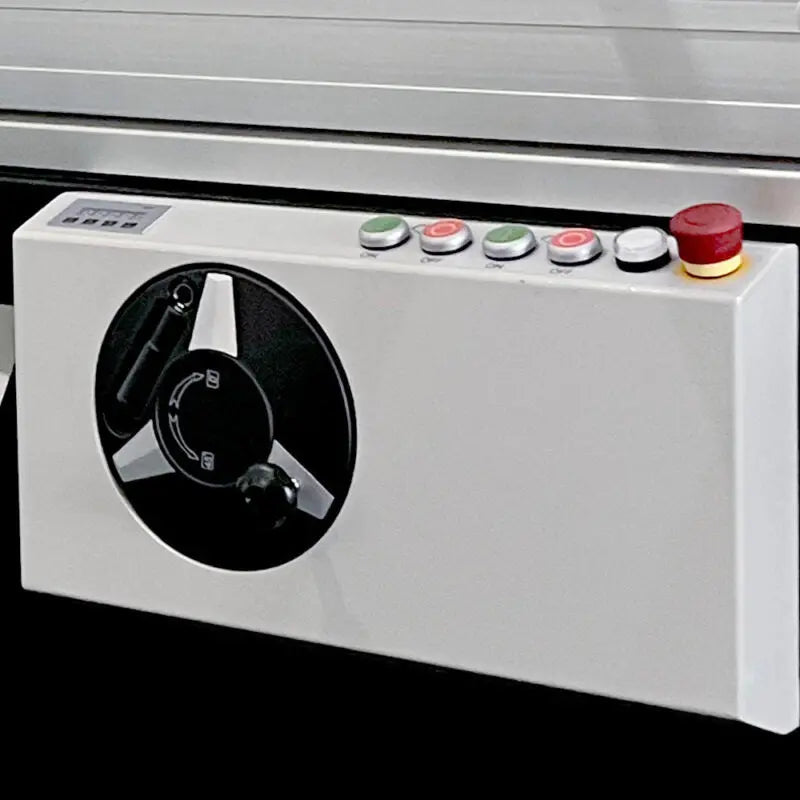

- Emergency buttons: 1
- Max tilt: 45°
- Max depth cut: 3”
- Max cutting length: 62”
- Max cutting height with blade at 90°: 3.5” / 90mm
- Max cutting height with blade at 45°: 2.4” / 62mm

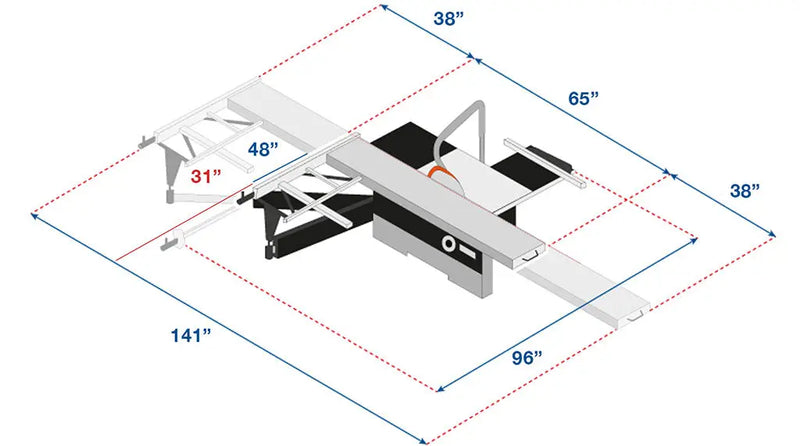

- Machine dimensions (collapsed): L 66” x W 98” x H 42”
Dust Collection

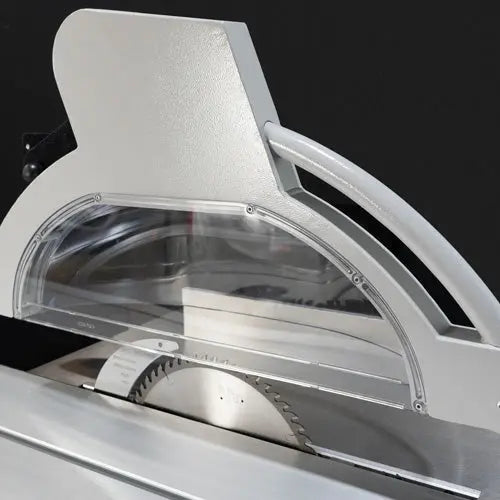

- Overhead Blade guard with Dust Port: 2”

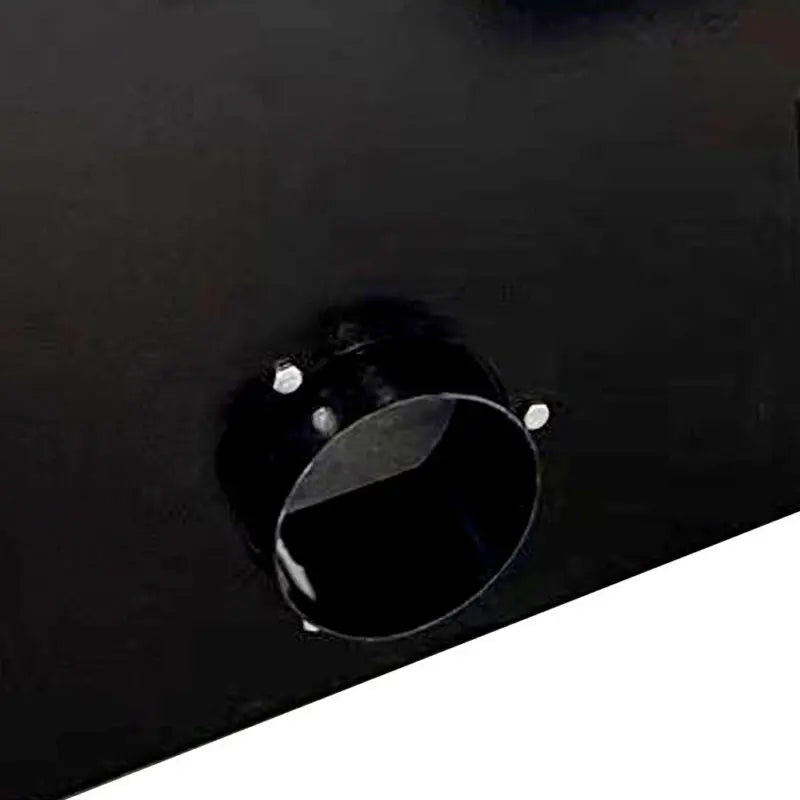

- Main Side Dust Port: 4
Motor
- Main Motor: 5HP - 24 Amps 60 HZ 3.7 KW
- Main Motor Blade Speed: 4000 RPM
- Scoring Motor: 1HP - 6 Amps 0.55 KW
- Scoring Motor Blade Speed: 8000 RPM
Blade
- Main Blade Diameter: 305mm
- Main Blade arbor size: 30mm
- Scoring blade diameter: 120mm
- Scoring blade arbor size: 20mm
