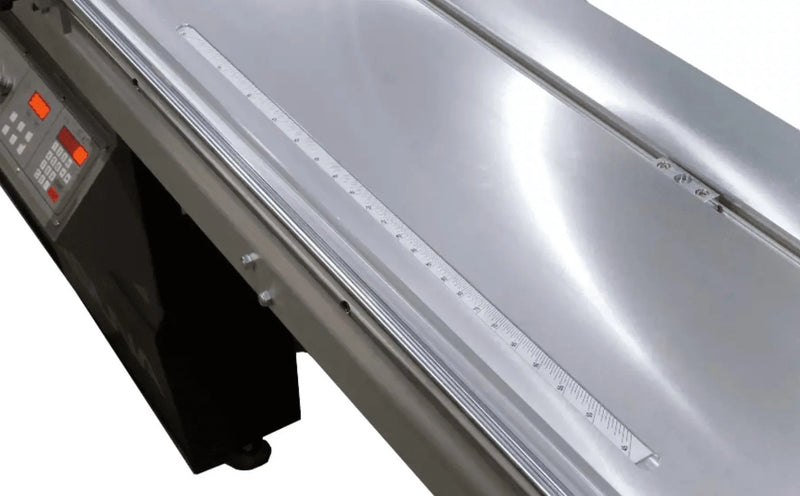

The sliding table is constructed of anodized aluminum. The dumbbell design is widely recognized as the superior choice for high-end sliders today. Ultra-smooth movement allows you to move the table effortlessly. The European-style 51″ rip fence consists of a heavy-duty casting riding on a micro-polished solid steel bar. On the backside of the casting is a small adjustable wheel to make sideways movement a breeze. The rip fence is outfitted with a micro-adjustment for fine-tuning; simply lock it in place and adjust the fence incrementally. The overhead guard comes standard with quick-change 90° and 45° guards; you can switch from one to the other in a matter of seconds. A nice detail is the swing-away function that allows you to quickly move the guard out of the way.
Features
- Max Main Saw Blade: 14″
- Sliding Table Capacity: 10′ 6″
- Motor Power: 7.5HP 220V/ 60Hz/ 3Ph
-
Sliding Table Capacity: 10′ 6″
-
Max Main Saw Blade: 14″
-
Max Cutting Height w/ Blade at 90°: 4-3/4″
-
Max Cutting Height w/ Blade at 45°: 2-3/4″
-
Main Motor Power: 7.5HP 220V/ 60Hz/ 3Ph
-
Main Saw Speed: 3000/4000/5000 RPM
-
Scoring Saw Blade: Ø120mm
-
Scoring Saw Blade Bore: Ø20mm
-
Scoring Blade Speed: 8000 RPM
-
Scoring Motor Power: 1HP
-
Max Rip Capacity: 51″
-

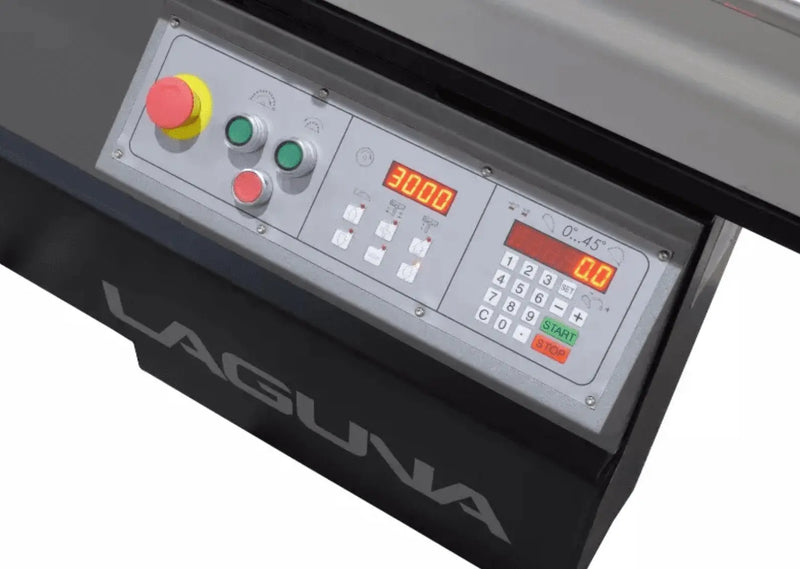

Manual Control For Cutting Width Adjustment w/ DRO
-
Digital Control For Saw Blade Tilting Adjustment
-
Motorized Control For Main Saw Blade Height Adjustment
- Motorized Control For Scoring Saw Height Adjustment
-
Motorized Control For Scoring Saw +/- Direction Adjustment
-
Digital Display For Blade Tilting Angle
-
Digital Display For Main Blade Speed RPM
