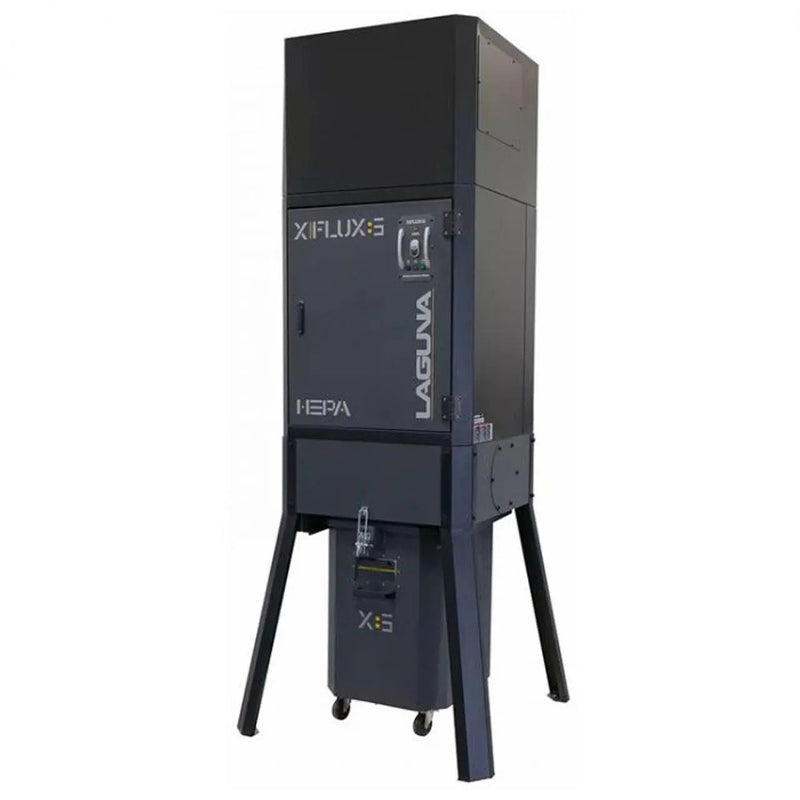

The all-new X|Flux 5 boasts a powerful 5hp motor and impressive 1823 CFM. Auto-cleaning of the HEPA filter is accomplished by double-paddles that sweep the filter every 3 minutes of system use in a clockwise and counterclockwise action. Remote and LED drum light are standard. The X|Flux 5 is a full-size stationary, single-stage dust collection unit with convenient 39 gallon drum on locking castors.
Specifications:
Motor Specs: 5 HP
Electrical Specs: 220V / 60Hz / 1PH / 3450 RPM
Running AMP (8” inlet) 21.5 A at 220V
Air Volume: 1823CFM (cubic feet per minute)
Max. static pressure 12 Inches of water
Fan size 14.5”
Inlet: 8”
Decibel Reading: 69 dBA (@9.8ft)
Remote Control: High frequency
Collection capacity 39 gallon Octagon drum x 1 set
Packing Size:
(L x W x H) 35.4” x 28.3” x 81.5”
(90 x 72 x 207 cm)
Machine weight 456 lbs. (207 kgs)
Shipping weight 544 lbs. (247 kgs)
Assembled Dimensions:
(L x W x H) 36” x 38” x 91”
Filter Media Filtering area: 32.3 sq/ft (3m2)
Cartridge Filter HEPA 19.7” x 19.7” (50 x 50cm) x 1pc ; (0.3-0.4 micron @ 99.7% efficiency)
