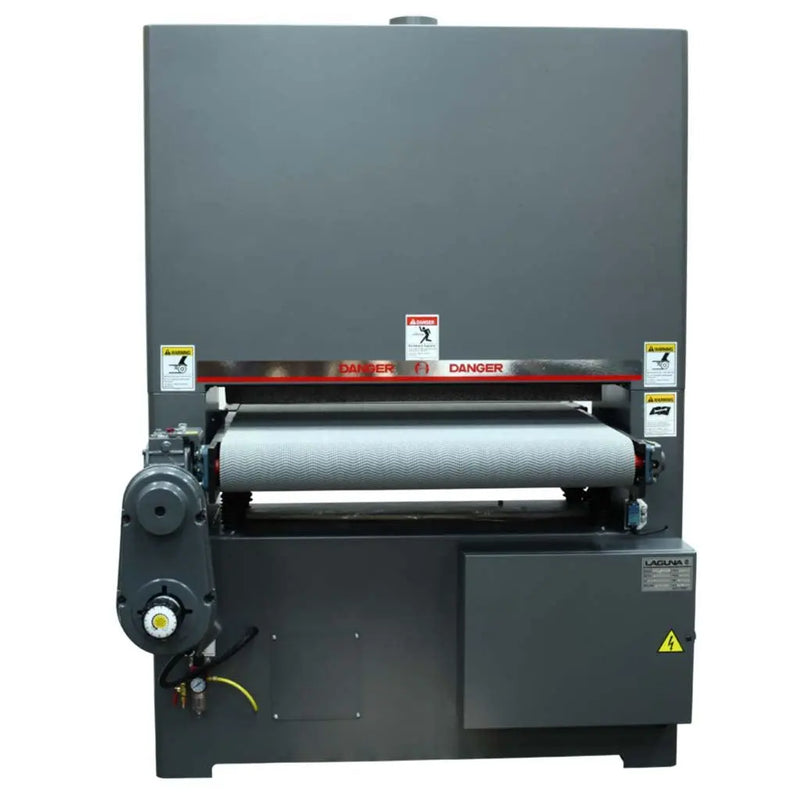

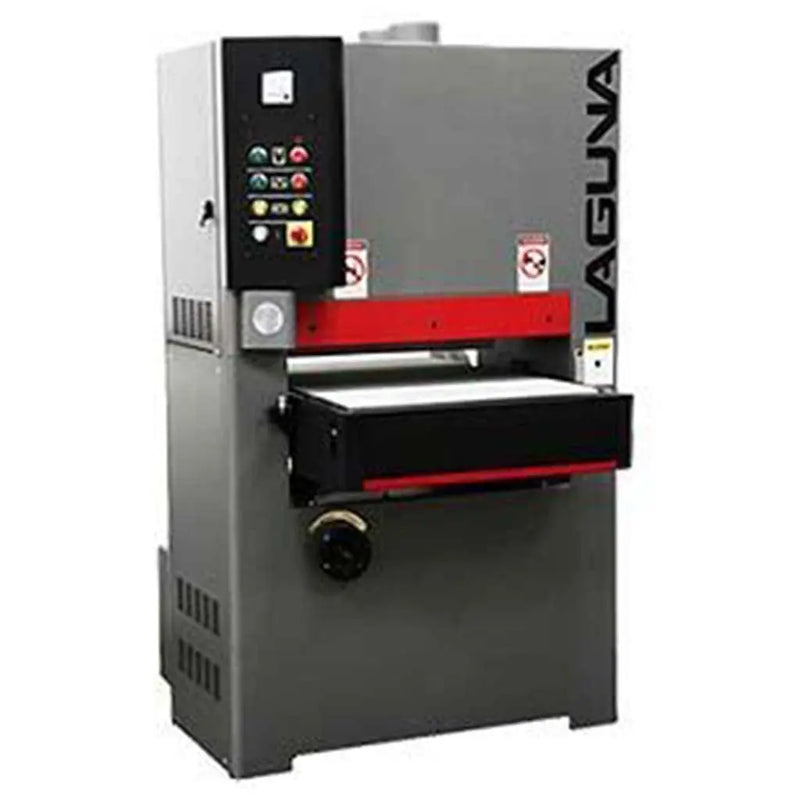

Laguna Pro 51 Wood Widebelt Sander

by Laguna
SKU MSANWB51X75-2RK-30-0197
Original price $44,999.00 - Original price $44,999.00
Original price
$44,999.00
$44,999.00 - $44,999.00
Current price $44,999.00

Free Shipping

Enjoy Free Shipping on Most Products in Store!

No Sales Tax

No Sales Tax on Your Order Except WY*

Why Shop With Us?

  • Authorized Retailer for Laguna
  • Lowest Prices Online
  • No Sales Tax (Excluding WY Residents)
  • Speak with an Expert Today: 307-222-6334

The Laguna Tools 51" 2RK (Roller + Combo head) wide belt sander is the perfect machine for any woodworking shop. The belt length is 75" which is the same length as several larger machines. The longer belt means it will not only last longer due to more abrasive material it will also run cooler.

Features

  • Double Drum
  • Main motor: 30HP
  • Variable feed speed: 2HP
  • Table lifting motor: 0.25HP
  • Voltage: 220/3 PHASE
  • (PLC) Programmable Logic Control
  • Automatic Thickness Control

This machine is equipped with 1 ( 8”) roller and a second (4”) roller followed by a wide platen for fine finish. This allows you to use a rougher grit on first roller (8”) that will absorb most of the impact and do the dimensioning while the second roller (4”) with the Platen can have a finer grit. This will save time over having to run your production through the machine 2 times & change belt grit. Due to the large HP motor (30 HP) the machine is capable of dimensioning even wide boards. This is important for customers who do not own a thickness planer. When you use the machine to dimension your work only very aggressive paper 60 or 80 grit should be used. The heavy carpet feed belt is powered by a separate 2HP motor and the feed speed is adjustable from 12 to 60 fpm.

You can adjust the thickness in 4 ways:

  1. Manual hand-wheel on the bottom of the machine
  2. By pressing the up or down arrow the table will move in the desired direction
  3. Input a set dimension on the keypad and machine will go to that dimension
  4. The auto thickness gauge will measure your wood piece and automatically set the table to the thickness of the piece of wood inserted

Max Sanding Height: 5.9" (150mm)

Min Sanding Height: ¼" (6.4mm)

Max Sanding Width: 51" (1300mm)

Sanding Belt Size: 51" x 75" (940mm x 1905mm)

Adjustable Sanding Platen: 1¾” (45mm)

Diameter: of Sanding Drum: 8" + 4"

Length of Sanding Drum: 51"

Sanding Drum RPM: 1725

Variable Conveyor Speed: 12 – 60 fpm

Dust Port Size: 4 (101mm)

Number of Dust Ports: 3

Footprint (L x W x H): 63" x 65" x 98"

Conveyor Height At Lowest Setting: 32" (813mm)

Cabinet: Steel

Operating Air Pressure: 6 Bar

Sanding Belt Oscillation: Pneumatic/Adjustable

Sanding Belt Motor Brake: Yes. Air Operated Disc Brake

CSA: Fully Certified

Net Weight: 4200 lbs

Ship Weight: 4450 lbs
